Allard International  |  SKU: AL288550601

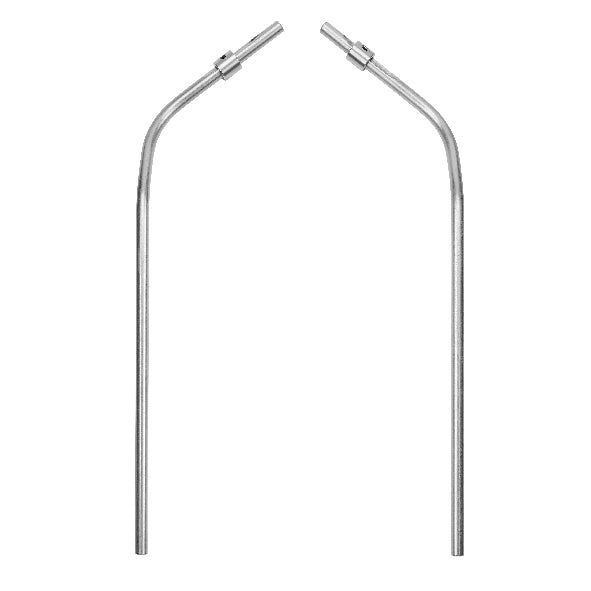

Allard SWASH Uprights 115° and 123°

Upright set for use with the Allard SWASH Go and SWASH Steady. Please note the same uprights are used for sizes 2-6, however, there are unique uprights for the size 1 in the Allard SWASH Go and SWASH Steady. Please be careful to select the correct option in the drop down or reach out to our team for guidance.
Price on application

Online Delivery Rates

NZ Retail Purchases
$9 NZD flat fee
Free for orders over $500 NZD

AU Retail Purchases
$30 NZD flat fee

Wholesale Purchases
Shipping will be calculated after your purchase and added to your invoice.

Online Delivery Times

Deliveries placed during the week before 2pm*

New Zealand
Auckland: Usually the next day!
Rest of North Island: 2 days
South Island: Approx 3 - 4 days
Rural deliveries can take 1-2 days in addition to the above

Australia
Approx 10 - 15 days

*Approximate timeframes given. Please note that for out-of-stock items and orders placed after 2pm or over the weekend, the shipping timeframes above will apply from the day of dispatch from our warehouse.

Click here to view all delivery and shipping information.

Easy Returns

Worried an item might not be right? Return your purchase in as new condition within 14 days and we will happily exchange the item or provide a refund for the cost of the item including the original shipping fee. Click here to view all returns information.

Give Us Feedback

We'd love to hear what you have to say. If you would like to send us some feedback about our website, available products, our team or anything else, please complete our Feedback Form.

If you have a spare minute, we'd also love you to leave us a Google Review.

Funding Information

Click below for information on funding for New Zealanders.

Am I Eligible for Funding?
Self Funding

Description

Select 115 degrees for use with a narrow sitting base.
Select123 degrees for use with a wide sitting base.

SWASH
Sitting, Walking And Standing Hip Orthosis

While standing or walking, SWASH provides just enough abduction to prevent scissoring and medial femoral rotation. As the hips are flexed to assume the sitting position, it automatically further abducts the hips to create a tripod base for enhanced sitting stability and more upright posture. The most visible benefits of the SWASH are readily apparent by improvements in sitting and standing posture and stability, and for the ambulatory user, improvement in gait. However, perhaps the most important benefit the SWASH offers is guidance for hip alignment.

Single Patient Use Only. This product must be fitted by or under the supervision of a Certified Orthotist-Prosthetist, Certified Orthotist or equivalent medical professional.

Please note: The codes listed are for the Uprights. only. A complete SWASH orthosis requires a Pelvic Band, Thigh Cuffs, and Uprights. Please order each item separately.

Specifications
Product Size Size 1 Size 2 Size 3 Size 4 Size 5 Size 6
Upright Diameter Steady 6 mm, Go 8 mm 8 mm 8 mm 8 mm 8 mm 8 mm
Waist to Mid-Patella 310 mm 375 mm 440 mm 480 mm 540 mm 600 mm

FAQ's

How long before a child will ”outgrow” the Allard SWASH?

An Allard SWASH will usually fit a child for 2-3 years. Components are sold separately, so it is possible for the orthotist to adjust up to a larger cuff or longer uprights should that be necessary.

The patient still seems to sit in too much spinal flexion when using the Allard SWASH. Can anything be done about that?

115° uprights tend to minimize this problem. Adding a sitting wedge (thicker part under seat, narrow part under legs) can also help to minimise the negative postural effects of tight hamstrings. If the problem persists, return to the orthotist for further adjustments.

Are there any side effects to using the Allard SWASH?

Pressure marks may be evident on inside thigh where the SWASH overcomes the forces of abnormal adductor tone. These marks should disappear within 30 minutes
of removing the SWASH.

How long should the patient wear the Allard SWASH each day?

The SWASH is generally worn at least six hours each day. It can also be very appropriate for use as a night splint.

Will AFOs still be necessary when using the Allard SWASH?

The Allard SWASH does not alter the need for AFOs. It may, however, change the design criteria for some patients. Because the SWASH has a significant influence over transverse plane rotation of the lower extremities, AFOs will generally need to be set up in a relatively neutral position relative to rotation.

When will patients progress to not needing the to use the Allard SWASH?

The SWASH helps manage the consequences of high adductor tone. While there may be some carryover in lessened adductor tone after use of the SWASH, it is
not known if it will return if SWASH use is totally discontinued.

Will using the Allard SWASH strengthen adductors?

The opposite is true because the SWASH serves to stretch the adductors and cause them to clinically present with lower tone.

Do you need to remove the Allard SWASH for toileting?

Generally the Allard SWASH must be removed for toileting because the orthosis interferes with easy donning and doffing of underwear and diapers.

Is the Allard SWASH usually worn over or under clothing?

The SWASH® is generally fitted under clothing to optimise the control the device has in enhancing hip alignment.

Resources
SWASH Go And SWASH Steady Brochure SWASH Go And SWASH Steady Clinical Manual SWASH Go And SWASH Sizing Chart And Parts Guide Allard Product Catalog 2024
